家作り備忘録98A selfbuilder's note

かなり中途半端な作業しか出来なかった。プラン外の仕事が急に湧いて出て来る事で混乱してしまった結果か?
家作り備忘録98A selfbuilder\'s note_b0229636_2327539.jpg

最初は通気スペーサー=転び止めを中間部に入れるだけで充分と考えていたら、軒下導入部も通気スペーサーにする必要が出て来た。桟木との兼合いで、充分な通気度が得られないと解ったので、全部の転び止めを通気スペーサーに変更。これに時間を喰った。
家作り備忘録98A selfbuilder\'s note_b0229636_2327631.jpg

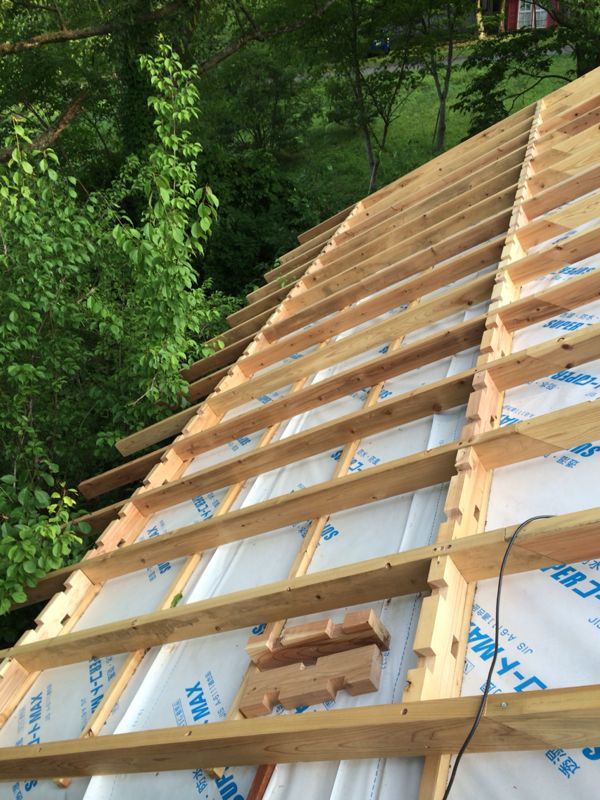

何とか取り付けたけど、繋ぎ目と被さって、後で一段ズラすハメに。
家作り備忘録98A selfbuilder\'s note_b0229636_2327820.jpg

ニンニク。先週は、こんなに元気だったのに。
家作り備忘録98A selfbuilder\'s note_b0229636_2327961.jpg

猿にボロボロにされた。食べもしないのに、引き抜くだけで、菜園はグチャグチャ。覚えとけよ〜。必ず代償払わせるからな。
家作り備忘録98A selfbuilder\'s note_b0229636_2327115.jpg

その夜は、セルフビルド仲間のヒロシさんとこで七輪焼肉大会。その夜集まった5人全員が全て自力で家を建てている、もしくはリフォームしているという、かなり珍しいメンバー。深夜近くまで、熱い情報交換会になりました。
家作り備忘録98A selfbuilder\'s note_b0229636_23271271.jpg

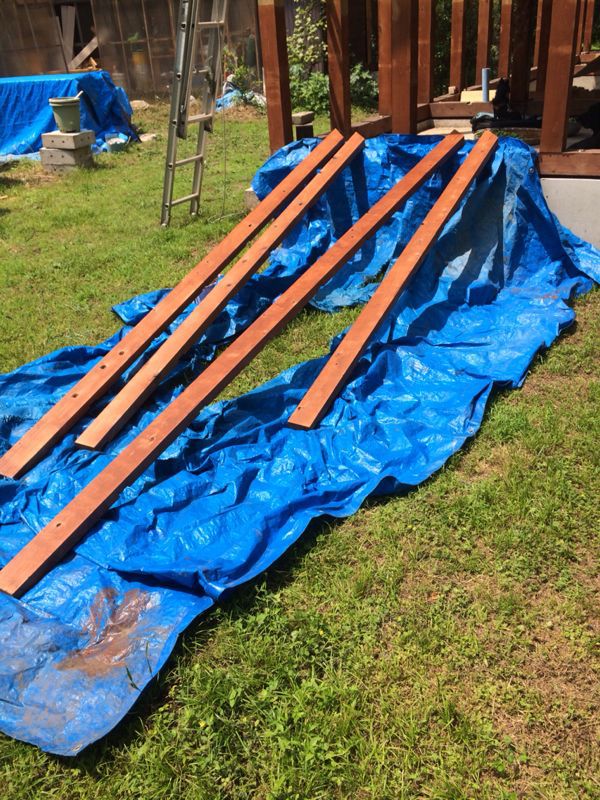

玄関アプローチ部分の屋根垂木が全部ついたので、露出になる鼻隠しに外部木材用防水塗料を塗る。梅雨の晴れ間は日射しが強く、良く乾く。
家作り備忘録98A selfbuilder\'s note_b0229636_23271368.jpg

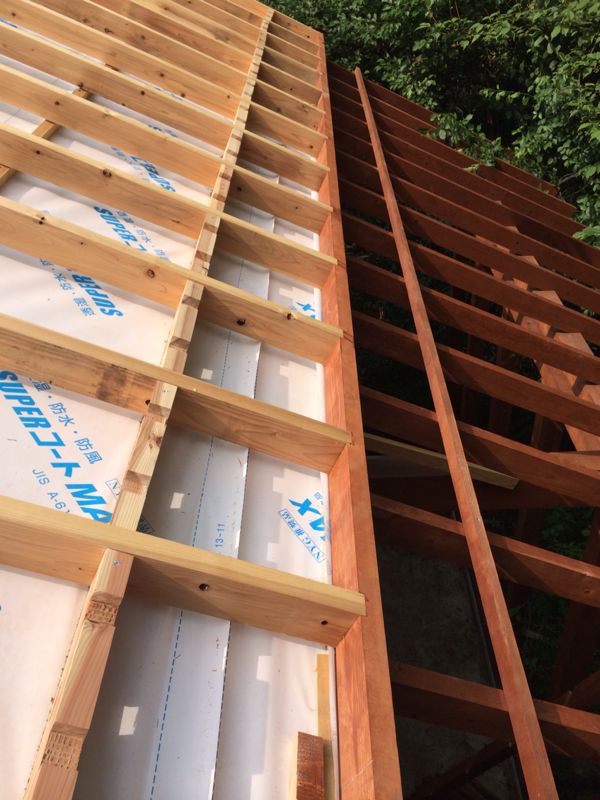

鼻隠しを取り付けた状態。垂木の幅合わせも兼ねて、1/4間毎に欠き込みを入れて鼻を揃える。これで上段の下地合板を張る準備が出来た。
家作り備忘録98A selfbuilder\'s note_b0229636_23271565.jpg

今年は、梅の裏年。
家作り備忘録98A selfbuilder\'s note_b0229636_23271619.jpg

年を追う毎に山椒の実の収穫が増える。
家作り備忘録98A selfbuilder\'s note_b0229636_2327184.jpg

ルリセンチコガネが来てくれた。日本で一番綺麗なフンコロガシ。ジャパニーズスカラベ。基地周辺の自然が濃い証だ。

Not much I could do this weekend. The weather was fine. No excuse. But, planned spacer installing had to change its specs on the way. The reason was clear. I've miscalculated space between roof ribs and insulation support rod. My calculation proved certain space for air intake between the two. However additional height of insulation support rod shut the space. So that all of the spacers had to have air flow gap. Took me another half a day to cut out.

By sunset of the first day, all spacers on east shed installed. And later the position had to be shifted to a bit higher side. Took me another half of the next morning. Into bad spiral. No question.

Saturday night was the first meeting of secret society at Hiroshi-san's house. He and his wife's been renovating their house built about 70 years ago. Big traditional Japanese style house. People gathered that night are building or renovating their own house. We had long discussion about sourcing, building technique and etc till midnight. Great to have such a precious fellows. Especially in such a small area around my secret base.

Finished installing air flow spacers Sunday afternoon. Sunny hot day dried stain on edge cover of roof very quickly. The edge cover flushed with roof ribs end clean and flat. Now ready for place roof base plywood board. Probably next weekend. Hopefully in the middle of monsoon season.
